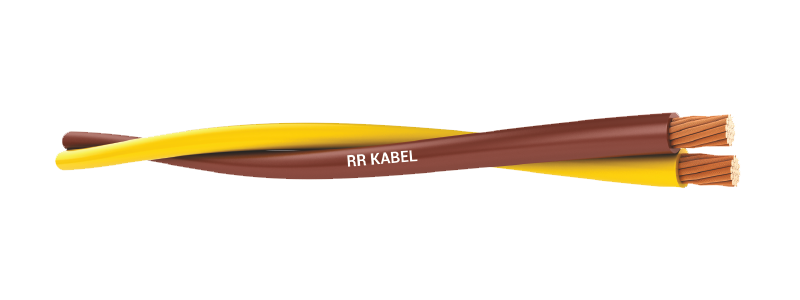

FLRY n x (TWISTED CABLES)
- REACH
- RoHS
- CE
Application
These are unsheathed twisted wires used in automobiles
Standard
In accordance to ISO 6722-1
Temperature Range (3000 Hrs)
-40°C to +105°C
Cable Construction
Soft annealed electrolytic copper Cu-ETP1 according to DIN EN 13602, bare or tinned copper construction acc. to ISO 6722-1
PVC with properties according to according to ISO 6722-1, Class B
Special Properties
Higher heat resistance. Tinned copper conductor. Other lay lengths available on request.
Packing
Available in 100 mtrs. Longer length available in spools or wooden drums.
Cabel Design Parameters
| No. of Cores x Nom. CrossSection (mm²) |
No. of Strands |
Max. Strand Diameter (mm) |
Max. Conductor Diameter (mm) |
Max. DC Conductor Resistance at 20°C (Ω/km) |
Min. Insulation Thickness (mm) |
Core Diameter (Max.) (mm) |
Lay Length (Nom.) (mm) |
Outer Diameter (Max.)(mm) |
Approx. Weight (Kg/Km) |
| 2×0.35 | 7 | 0.26 | 0.8 | 52.0 | 0.20 | 1.3 | 16 | 2.6 | 9.0 |
| 2×0.35 | 7 | 0.26 | 0.8 | 52.0 | 0.20 | 1.3 | 20 | 2.6 | 9.0 |
| 2×0.35 | 7 | 0.26 | 0.8 | 52.0 | 0.20 | 1.3 | 30 | 2.6 | 9.0 |
| 2×0.5 | 19 | 0.19 | 1.0 | 37.1 | 0.22 | 1.6 | 15 | 3.2 | 13.0 |
| 2×0.5 | 19 | 0.19 | 1.0 | 37.1 | 0.22 | 1.6 | 30 | 3.2 | 13.0 |
| 2×0.5 | 16 | 0.21 | 1.0 | 37.1 | 0.22 | 1.6 | 20 | 3.2 | 13.0 |
| 2×0.5 | 16 | 0.21 | 1.0 | 37.1 | 0.22 | 1.6 | 30 | 3.2 | 13.0 |
| 3×0.5 | 19 | 0.19 | 1.0 | 37.1 | 0.22 | 1.6 | 30 | 3.5 | 20.0 |
| 3×0.5 | 16 | 0.21 | 1.0 | 37.1 | 0.22 | 1.6 | 40 | 3.5 | 20.0 |
| 2×0.75 | 24 | 0.23 | 1.2 | 24.7 | 0.24 | 1.9 | 30 | 3.8 | 18.0 |
| 2×0.75 | 19 | 0.21 | 1.2 | 24.7 | 0.24 | 1.9 | 30 | 3.8 | 18.0 |
| 3×0.75 | 19 | 0.23 | 1.2 | 24.7 | 0.24 | 1.9 | 30 | 4.1 | 27.0 |
| 2×1 | 19 | 0.26 | 1.35 | 18.5 | 0.24 | 2.1 | 30 | 4.2 | 22.0 |
| 2×1 | 32 | 0.21 | 1.35 | 18.5 | 0.24 | 2.1 | 30 | 4.2 | 22.0 |
| 3×1 | 32 | 0.21 | 1.35 | 18.5 | 0.24 | 2.1 | 25 | 4.5 | 33.0 |
| 4×1 | 19 | 0.26 | 1.35 | 18.5 | 0.24 | 2.1 | 30 | 5.1 | 44.0 |
| 2×1.5 | 19 | 0.32 | 1.7 | 12.7 | 0.24 | 2.4 | 30 | 4.8 | 32.0 |
| 2×2.5 | 50 | 0.26 | 2.2 | 7.8 | 0.28 | 3.0 | 30 | 6.0 | 52.0 |
| 5×2.5 | 50 | 0.26 | 2.2 | 7.8 | 0.28 | 3.0 | 50 | 8.1 | 130.0 |
| 6×2.5 | 50 | 0.26 | 2.2 | 7.8 | 0.28 | 3.0 | 55 | 9.0 | 156.0 |
