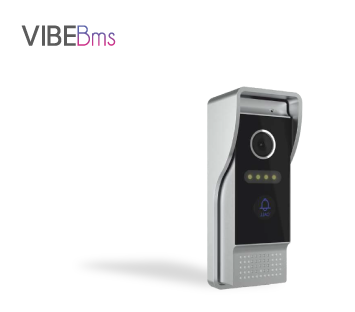

EXTERNAL UNIT
SPECIFICATIONS
- for 1 flat.
- 1 MP Camera, 110° angle view.
- CAT 5 newtwork cable connection, defaulted built-in POE function.
- Illuminated doorbell button.
- IP65 waterproof level.
- IR LED light for night vision.
- Can be powered by POE switch.
- Compatible with Android based indoor display unit.
- Digital IP system compatible with Vibelite app.

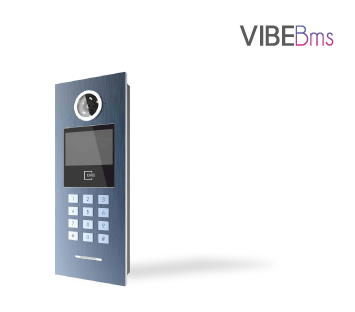

LOBBY UNIT
SPECIFICATIONS
- View Angle 90° | CMOS 1 MP Camera.
- Night Vision IR LED light 120° view angle.
- RFID card for unlocking.
- Power Consumption 200mA max.
- Operation Temp-40 50C
- Installation Method Flush mount and surface mount.
- Electronic / Magnetic Lock.
- Waterproof Resistance Ip65.
- Dimension (WxH) 140x365 mm.
- Digital IP system compatible with Vibelite app.

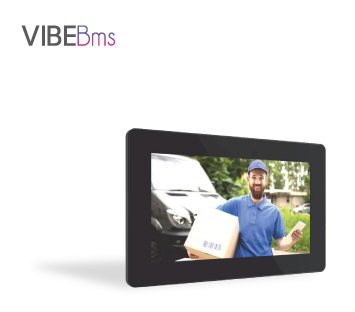

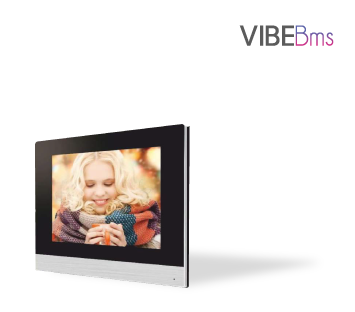

INDOOR DISPLAY UNIT
SPECIFICATIONS
- Plastic Body Panel.
- Door Chime Function.
- Gate Unlock Function.
- 32G large capacity storage supported.
- 7" capacitor touch screen with resolution 1024x600.
- Duplex communication way.
- Supports IP camera viewing function.
- Built in Standard POE, all POE switch compatible with digital IP system compatible with Vibelite app.
INDDOR DISPLAY UNIT (Aluminium Body)
SPECIFICATIONS
- Aluminium Body Panel.
- 7" capacitor touch screen with resolution 1024x600.
- 32G large capacity storage supported.
- Gate Unlock Function.
- Door Chime Function.
- Duple communication way.
- Supports IP camera viewing function.
- Built in Standard POE, all POE switch compatible with digital IP system compatible with Vibelite app.

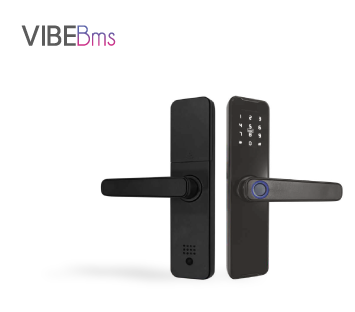

VIBE SMART DOOR LOCK ECO
SPECIFICATIONS
- Aluminum alloy panel / handle
- Unlock modes: Vibelite App / Fingetprint / Password / 2 Smart card /
Key User (fingerprint/card/password):Total 99
- Working power: 4 x AAA 1.5V batteries (not include)
- Wireless Standard: Wi-Fi 2.4G only
- Emergency key for backup & external support micro USB
emergency power supply to unlock
- Operation temperature: -20° - 55° Celsius
- Support dynamic temporary passcode
- Suit for the door thickness about 35-55mm
- Universal Left/Right Direction

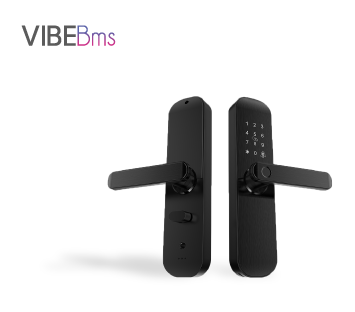

VIBE SMART DOOR LOCK PRO
SPECIFICATIONS
- Aluminum Alloy
- Unlock modes: Vibelite App / Fingerprint / Password / Smart card / Key
Capacity of fingerprint 100, capacity of password 30
- Working power: 4 x AA 1.5V batteries (not include)
- Wireless Standard: Wi-Fi 2.4G only
- Emergency key for backup & external support micro USB
emergency power supply to unloc
- Operting temperature: -20° - 55° Celsius
- Support dynamic temporary passcode
- Suit for the door thickness about 40-80mm
- Universal Left/Right Direction

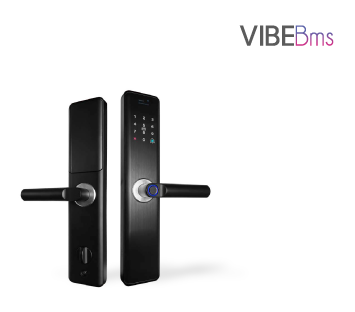

VIBE SMART DOOR LOCK CLASSIC
SPECIFICATIONS
- Suitable Door Thickness: 40-80mm
- Fingerprint Sensor: supported
- Operating temperature: -20° - 55° Celsius
- Wireless Standard: Wi-Fi 2.4G only
- Identity Time: 0.3 Sec
- Supply Voltage: 6V
- Low Voltage Warning: 4.8V
- Support external micro USB emergency power supply to unlock
- Univeral Left/Right Direction

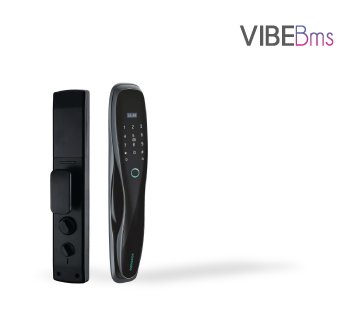

VIBE SMART DOOR LOCK ELITE (MATT BLACK)
SPECIFICATIONS
- Aluminum Alloy
- Unlock modes: Vibelite App / Fingerprint / Password / Smart card / Key
- Operating temperature: -20° - 55° Celsius
- Wireless Standard: Wi-Fi 2.4GHz 802.11b/g/n
- Fingerprint capacity: 100
- Password:100
- Magnetic card capacity: 100 pieces
- Working Power: 3200mah lithium-polymer battery(rechargeable)
- Wireless Standard: Wi-Fi 2.4G only
- Emergency key for backup & external support micro USB
emergency power supply to unlock
- Suit for the door thickness about 40-80mm
- Universal Left/Right Direction

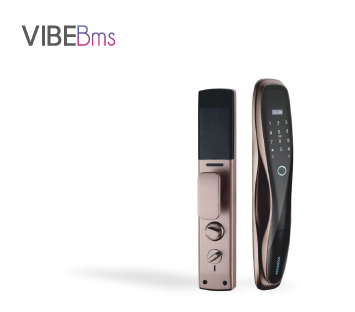

VIBE SMART DOOR LOCK ELITE (ROSE GOLD)
SPECIFICATIONS
- Aluminum Alloy
- Unlock modes: Vibelite App / Fingerprint / Password / Smart card / Key
- Operating temperature: -20° - 55° Celsius
- Wireless Standard: Wi-Fi 2.4GHz 802.11b/g/n
- Fingerprint capacity: 100
- Password:100
- Magnetic card capacity: 100 pieces
- Working Power: 3200mah lithium-polymer battery(rechargeable)
- Wireless Standard: Wi-Fi 2.4G only
- Emergency key for backup & external support micro USB
emergency power supply to unlock
- Suit for the door thickness about 40-80mm
- Universal Left/Right Direction
